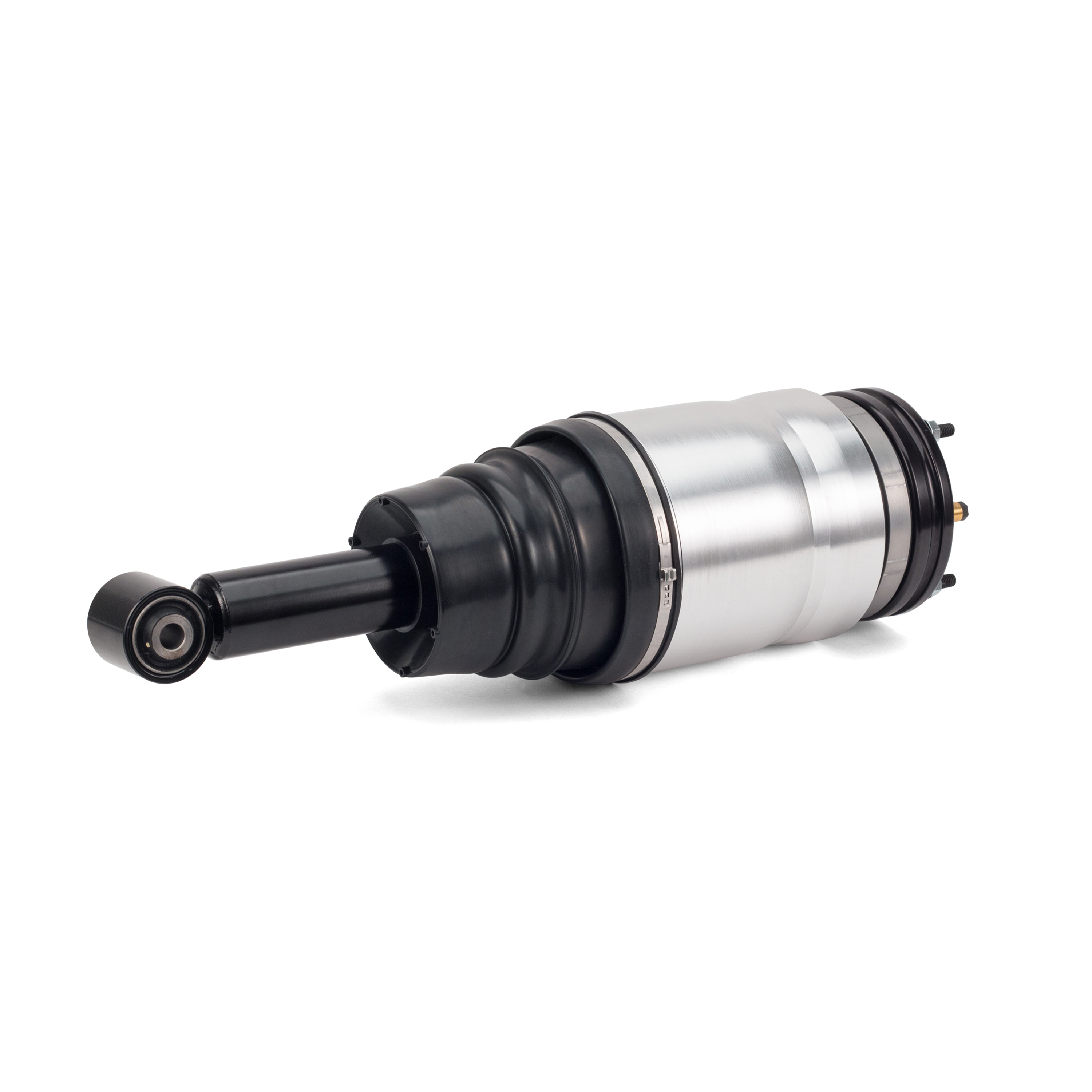

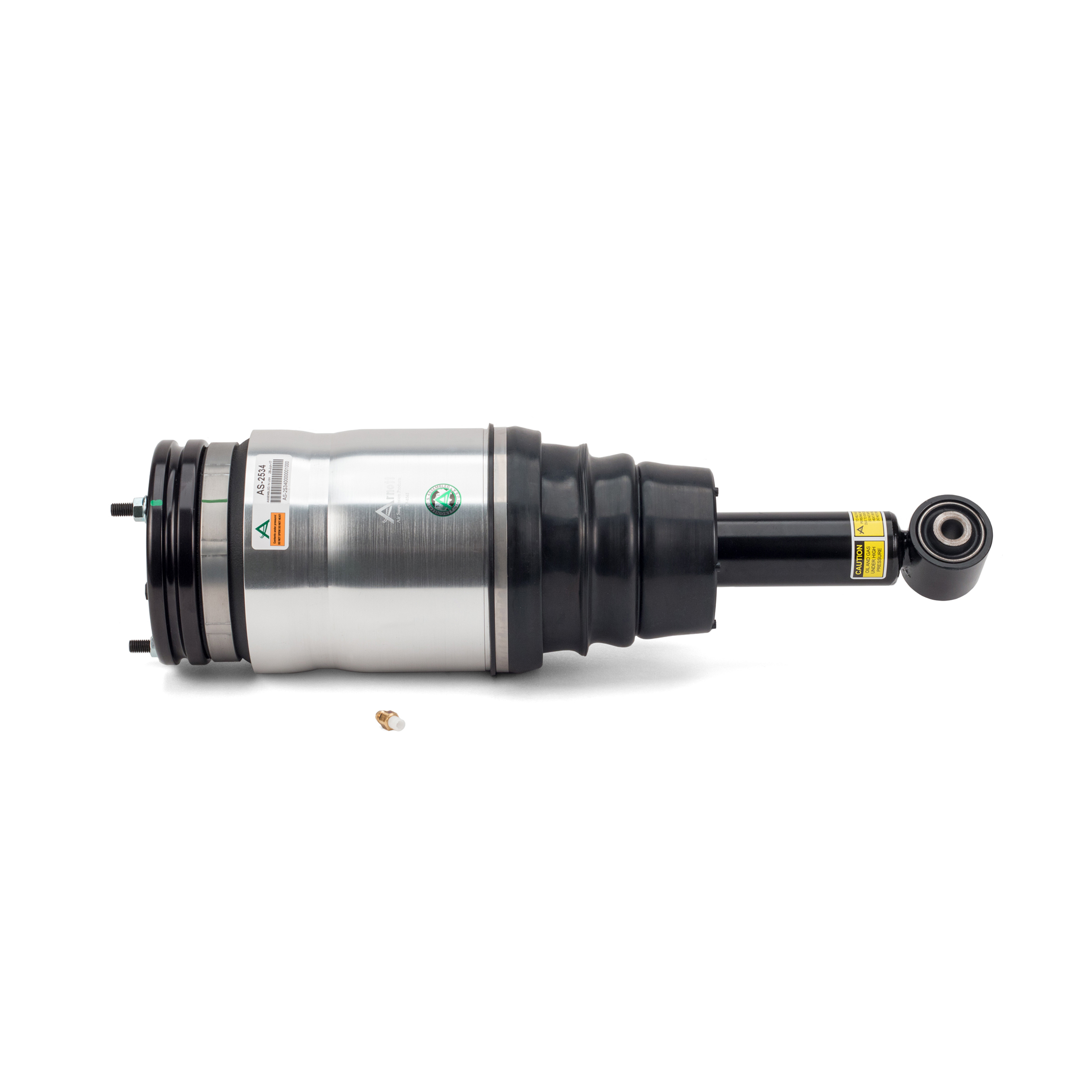

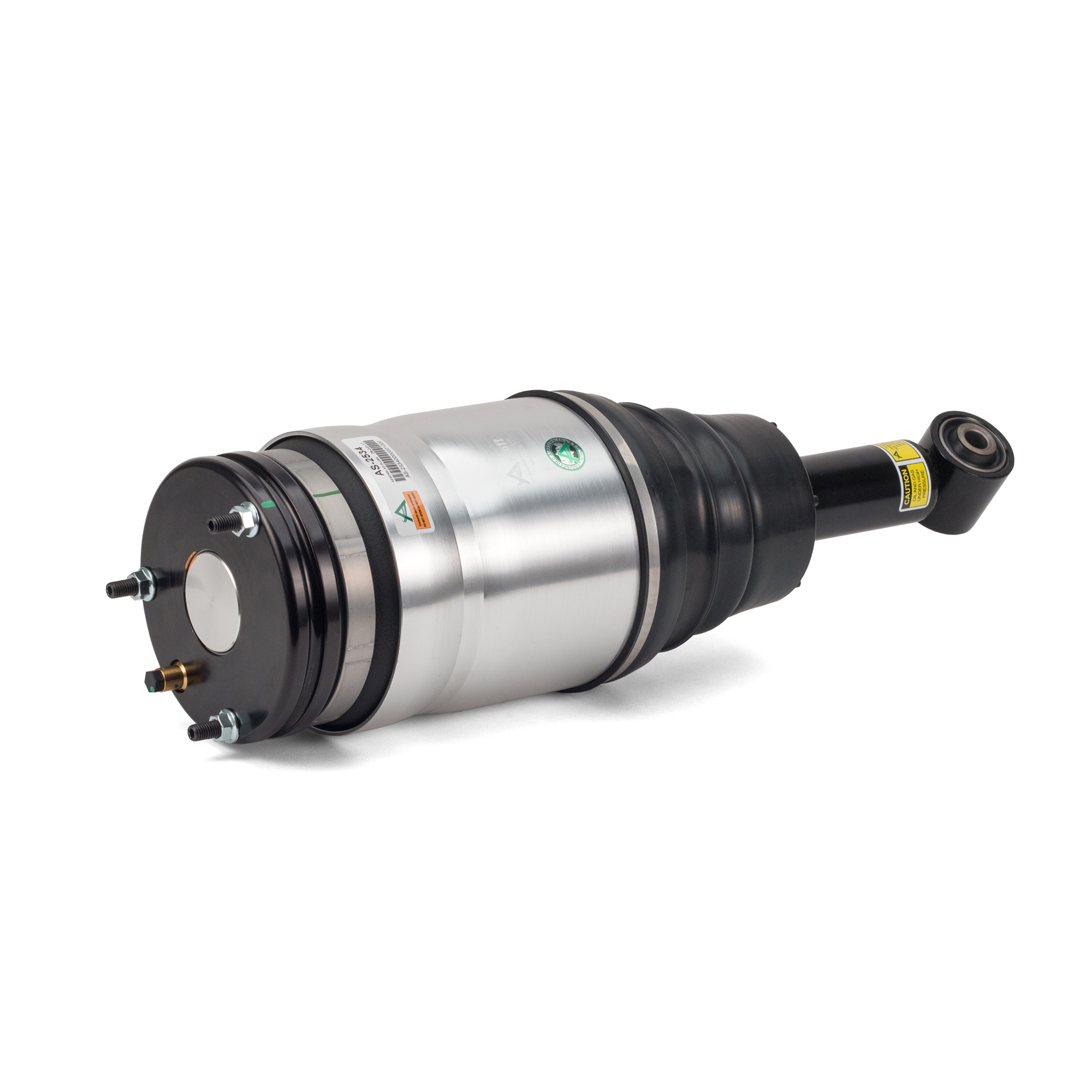

AS-2534Air Suspension Strut

New Air Suspension Strut

Arnotts new rear strut for the 05-09 Land Rover LR3, 10-16 LR4, 2006-2013 Range Rover Sport is new and not remanufactured. This aftermarket Land Rover replacement strut is designed and assembled in the USA. Arnotts exclusive design features a new custom-made and tuned shock absorber and is assembled with a multi-ply air spring bladder manufactured by ContiTech. The strut assembly also features heavy duty crimping rings, new seals, air fitting and dust cover.

  • ContiTech Multi-Ply Air Bladder
  • Extra Heavy-Duty Crimping Rings
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Loop/Eyelet
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
MakeModelYear
Land RoverLR32005-2009
Land RoverLR42010-2016
Land RoverRange Rover Sport2006-2013

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
LR016418Land Rover
LR032650Land Rover
LR038096Land Rover
LR041110Land Rover
RPD501020Land Rover
RPD501100Land Rover
