AS-2798Air Suspension Strut

New Air Suspension Strut

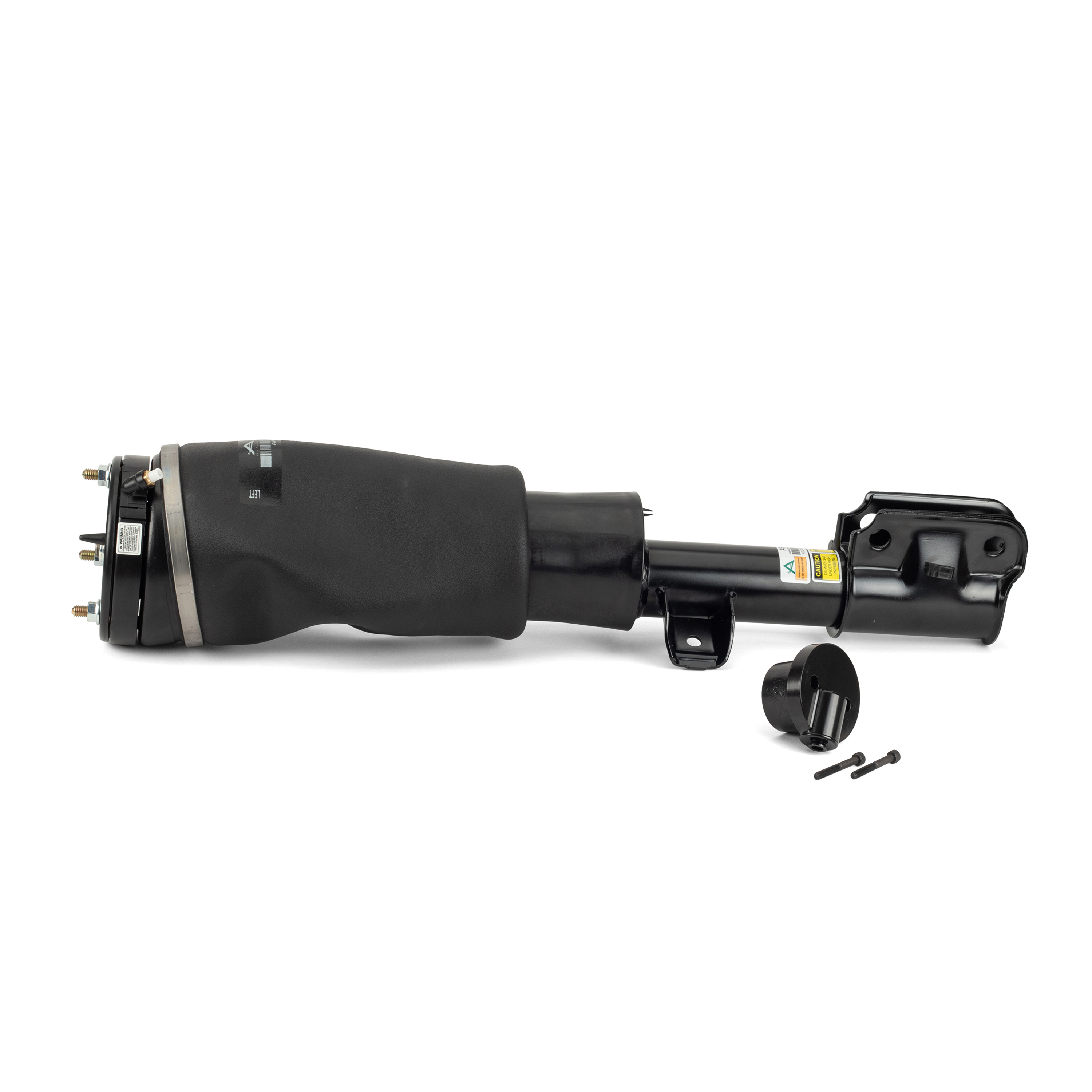

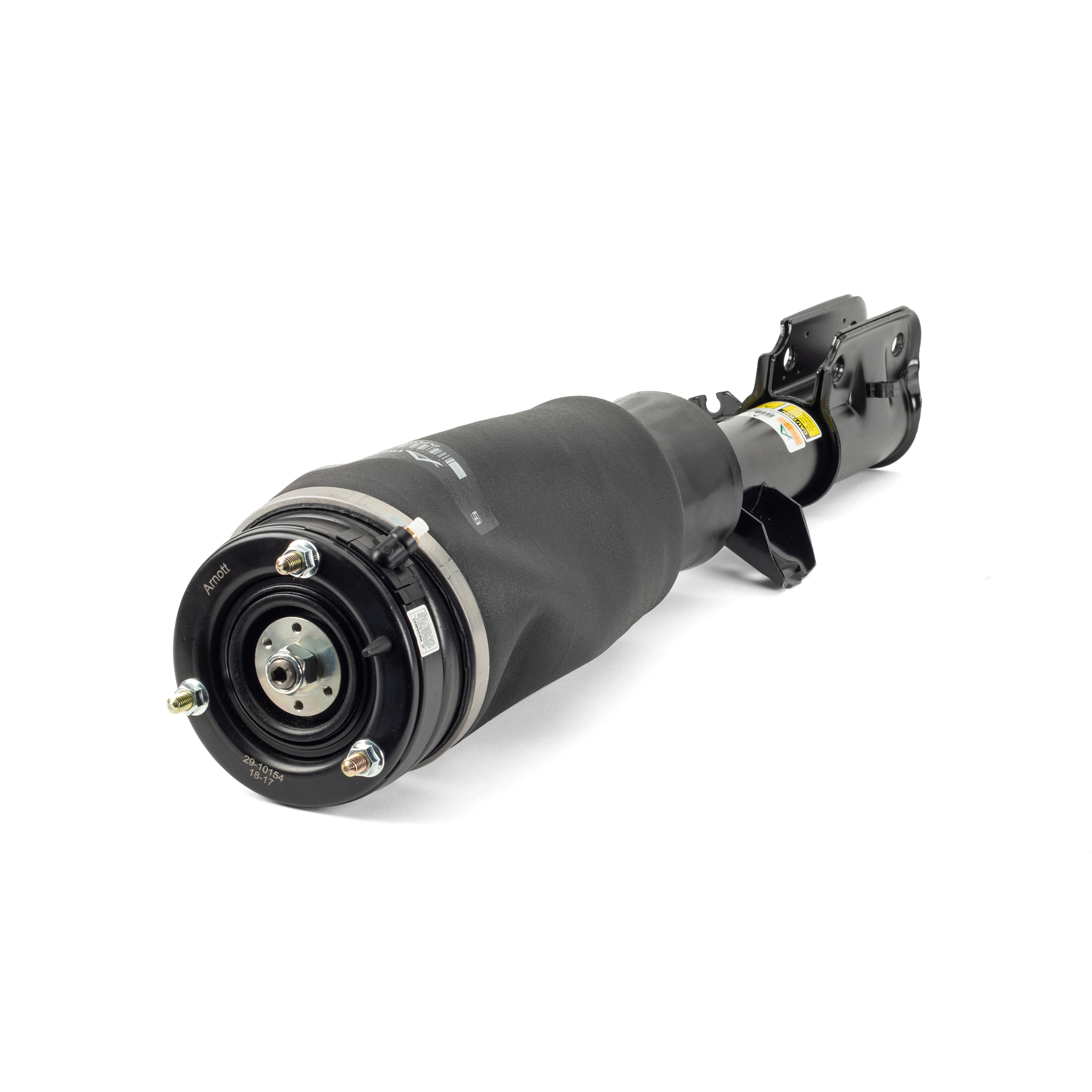

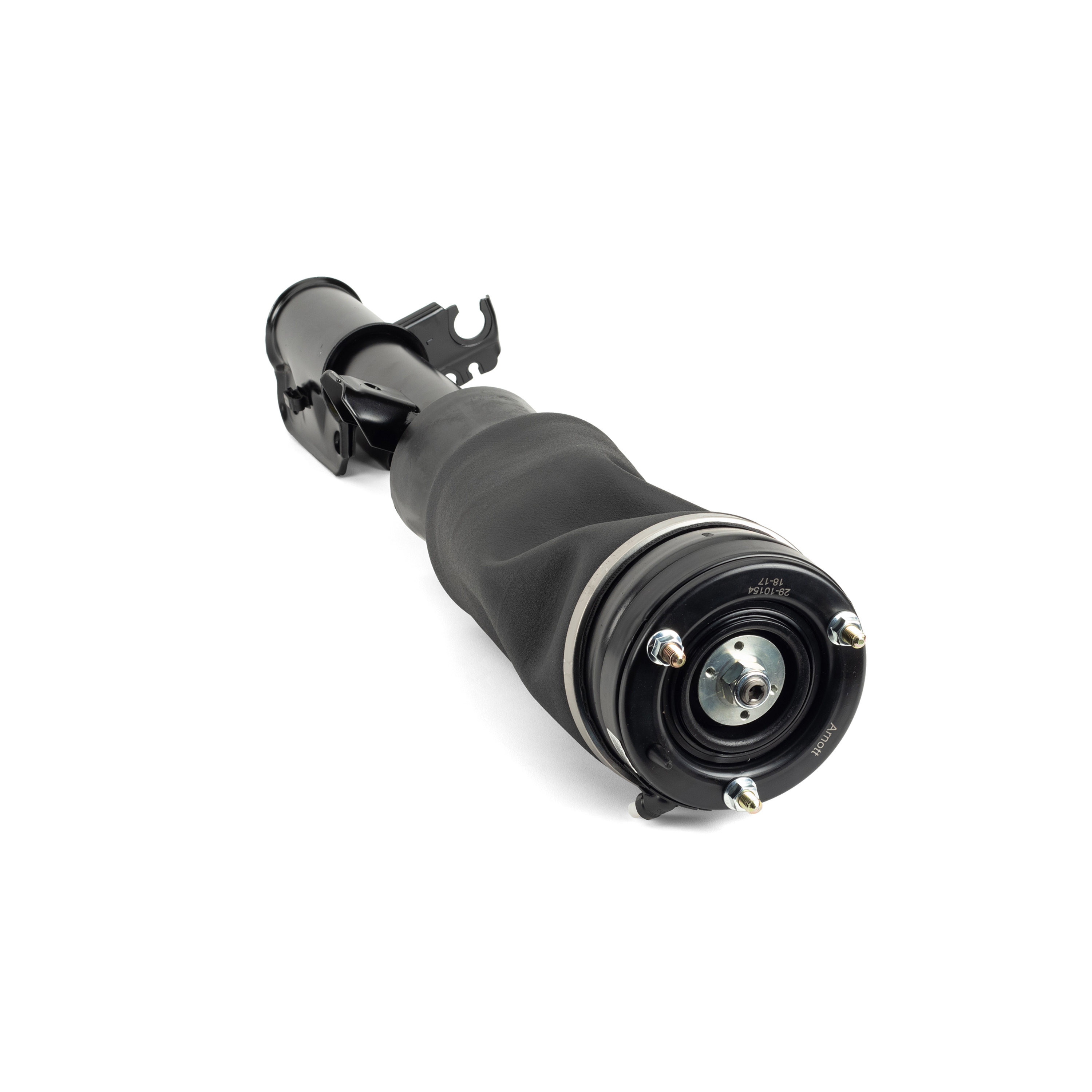

The Arnott designed new Front Left strut AS-2798 for the 2010-2012 Range Rover with continuous variable adaptive damping suspension (VDS), is new and not remanufactured. Arnotts exclusive design features a new custom-made and tuned shock absorber valved to ride like the O.E. and is assembled in the USA with a name brand multi-ply air spring bladder. The strut assembly also features extra-heavy duty crimping rings, new seals, air fitting and a stamped steel top.

  • Tested in the USA
  • Name Brand Multi-Ply Air Bladder
  • Maintains Auto-Leveling Functionality
  • Heavy-Duty Crimping Rings
  • Replace in Pairs
Adjustable Compression: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: #N/A
Internal Damper Type: Hydraulic
Lower Mount Type: Bracket
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: #N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
MakeModelYear
Land RoverRange Rover2010-2012

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
45-240690Land Rover
LR012885Land Rover
LR012886Land Rover
LR032567Land Rover
