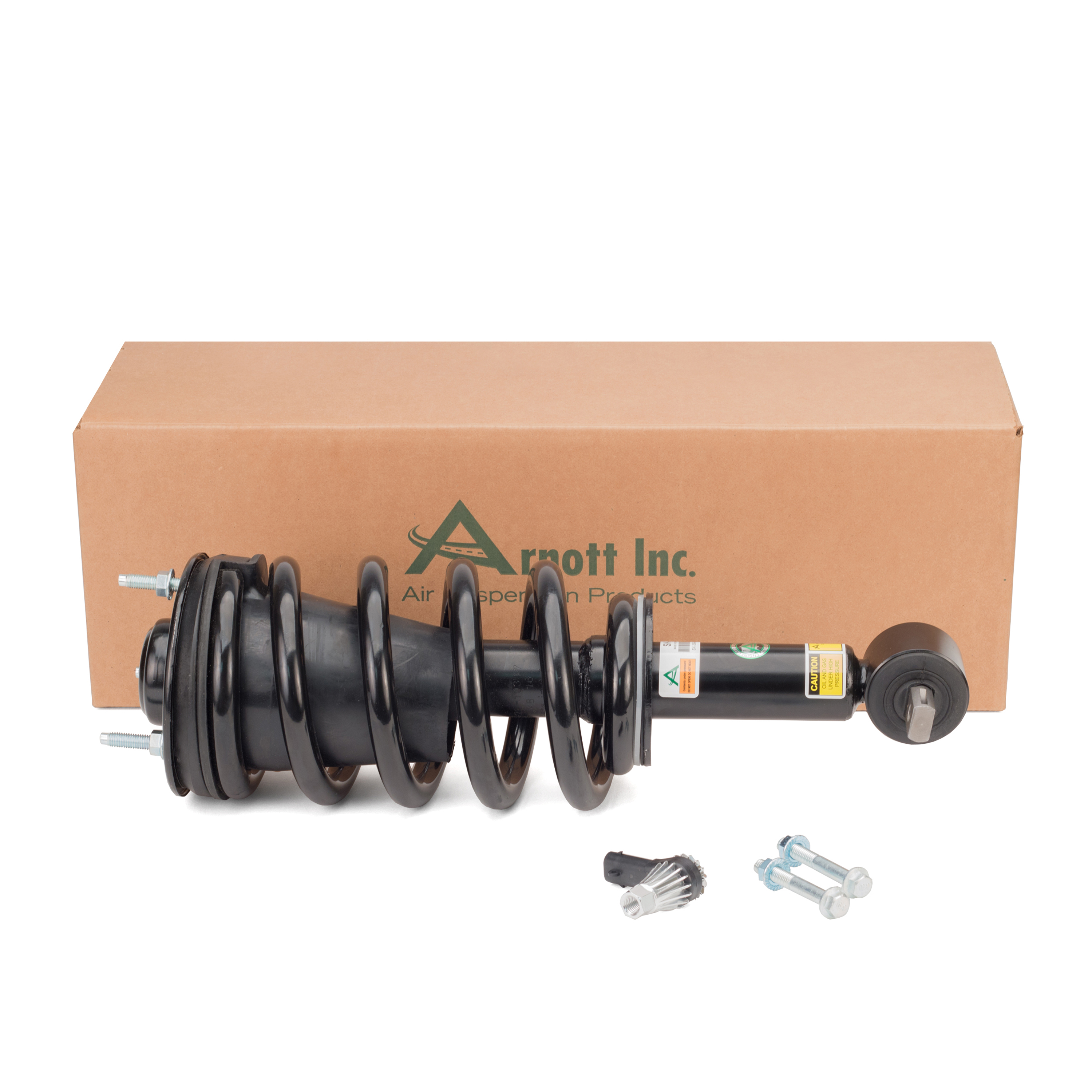

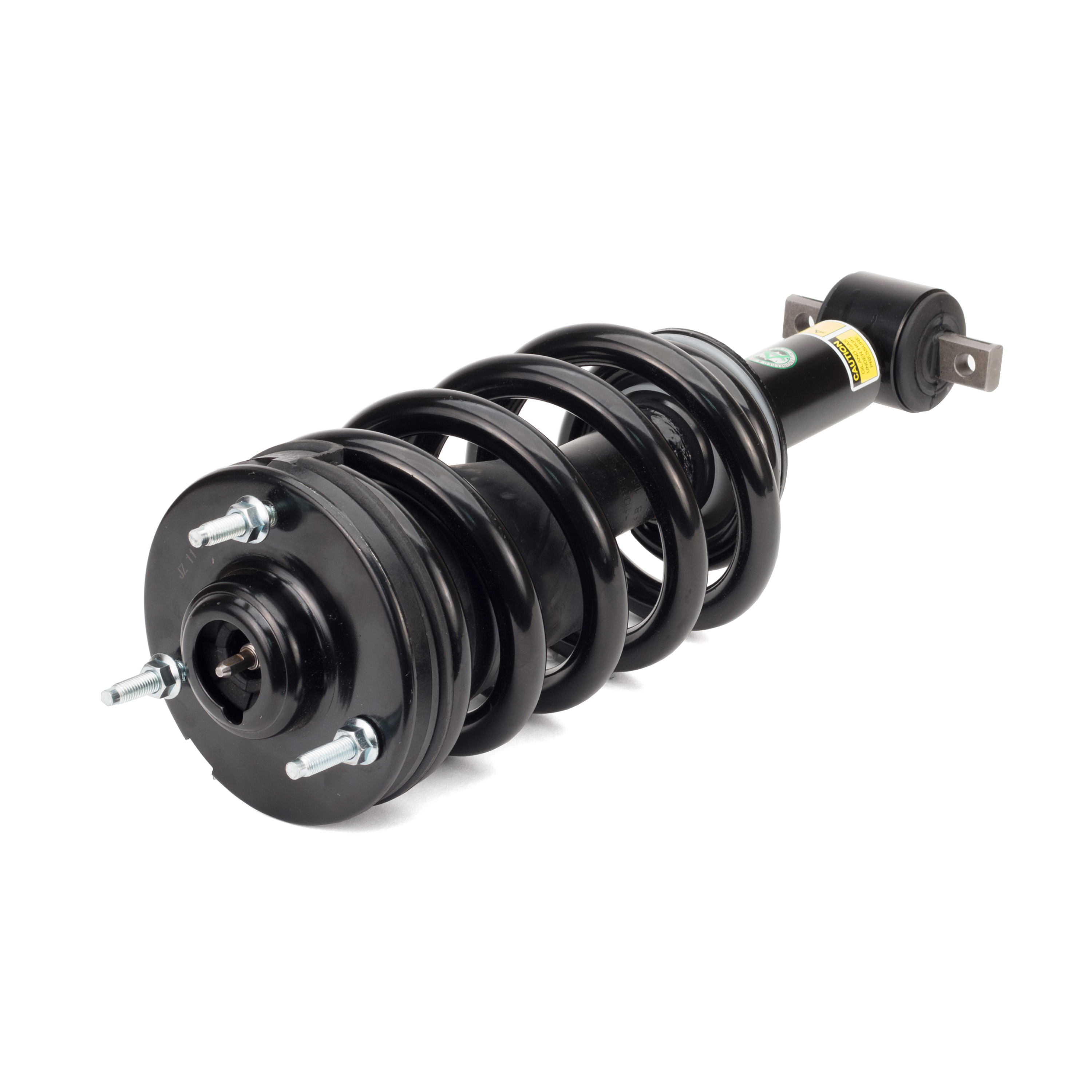

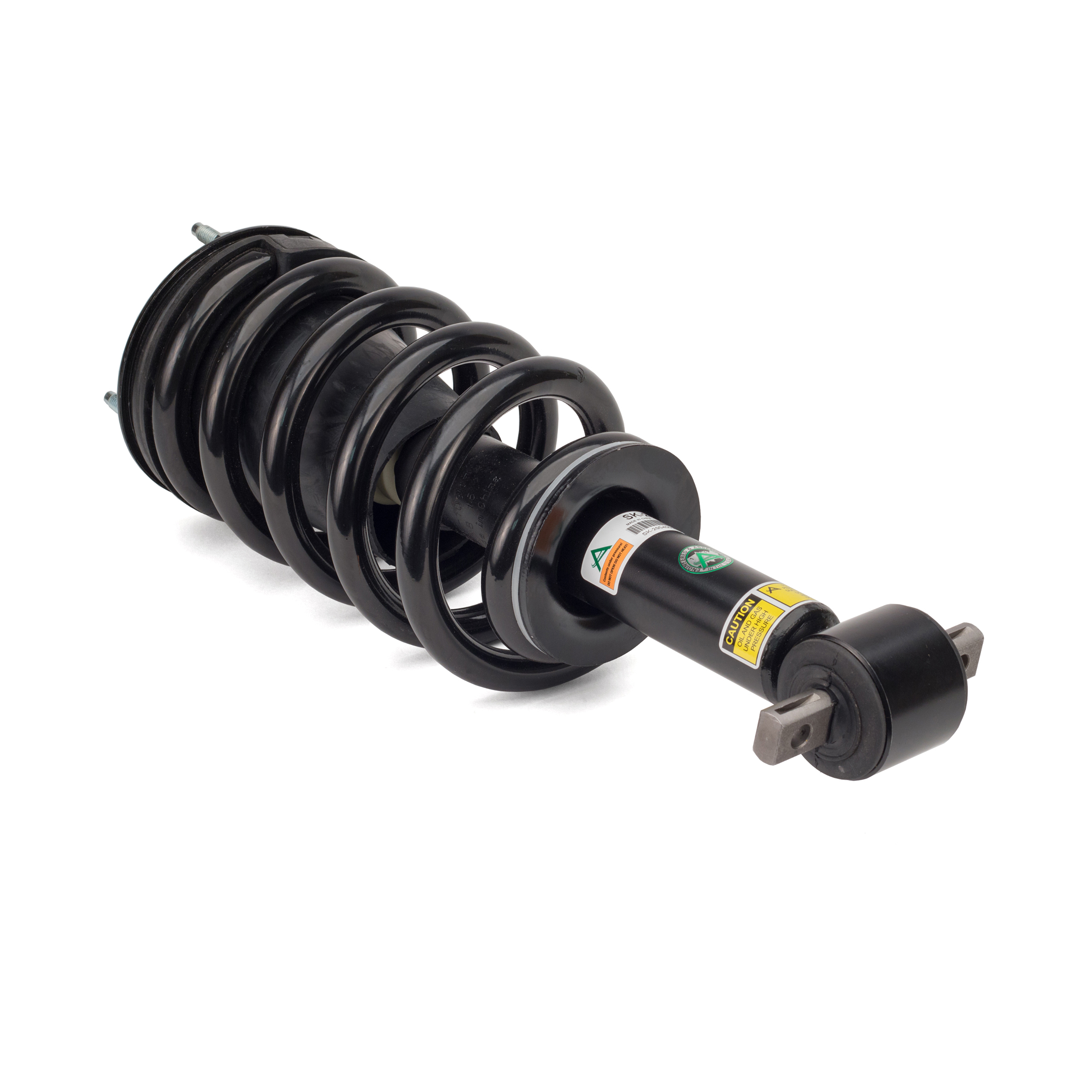

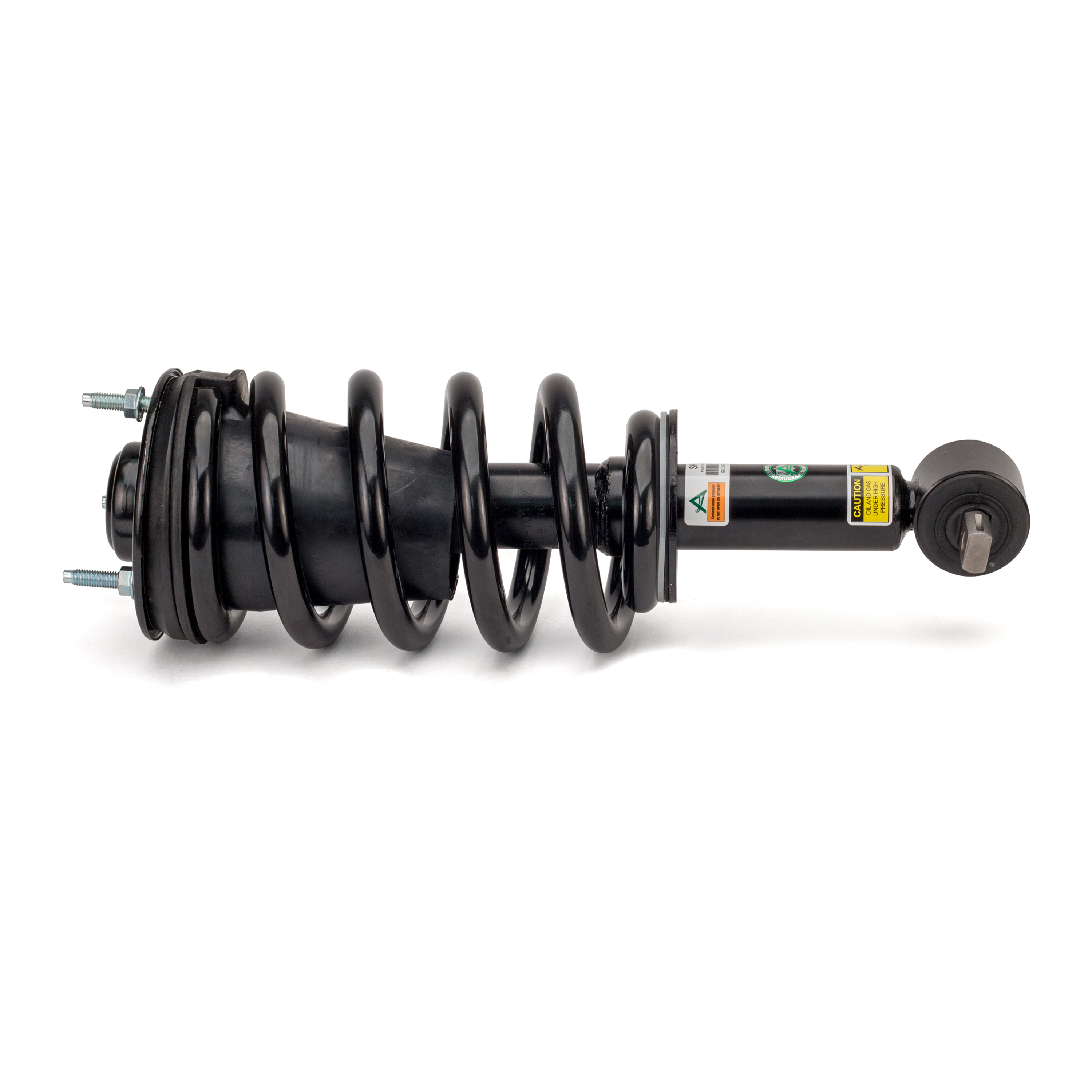

SK-2954Suspension Strut and Coil Spring Assembly

Coil Strut Assembly

This front coil-over strut SK-2954 is the perfect replacement for newer GMT900 GM SUVs equipped with electronic suspension. The Arnott designed custom-valved replacement strut fits the left or right side and is pre-assembled for safety with a new steel coil spring (Code 6DA, 7DA), upper shock mount, bump stop, spring seat and isolator. Arnott-designed struts are an excellent passive alternative for aging air or electronic suspension systems restoring comfort by replacing the OE shock with a completely new custom-valved coil over strut to provide a great ride.. Arnotts exclusive design includes a sensor which plugs into the electronic-damping system to eliminate dash panel error messages.

  • Converts active to passive
  • New Spring Seat, Isolator and Mounting Hardware
  • Installation Manual Available
  • Replace in Pairs
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body Diameter: 50 (mm)
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 361 (mm)
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 500 (mm)
Gas Charged: Yes
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Cross Pin
Lower Mounting Isolator Included: Yes
Mounting Hardware Included: Yes
New Or Remanufactured: New
Outer Housing Diameter: 50 (mm)
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 139 (mm)
Upper Mount Type: Bolt
Upper Mounting Isolator Included: Yes
MakeModelYear
CadillacEscalade2007-2014
CadillacEscalade ESV2008-2014
ChevroletSuburban 15002007-2014
ChevroletTahoe2007-2014
GMCYukon2007-2014
GMCYukon XL 15002007-2014

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
15815523General Motors
15909490General Motors
15911939General Motors
15939373General Motors
19300037General Motors
19300039General Motors
19300066General Motors
19300066General Motors
19353947General Motors
19353949General Motors
19353951General Motors
19353951General Motors
19368455General Motors
19368457General Motors
19420491General Motors
19420493General Motors
19420992General Motors
20810263General Motors
20810265General Motors
20810267General Motors
20810270General Motors
22240300General Motors
25821025General Motors
25821028General Motors
25845439General Motors
25845441General Motors
25845445General Motors
25870256General Motors
25888676General Motors
25888678General Motors
25888682General Motors
25940740General Motors
25940740General Motors
